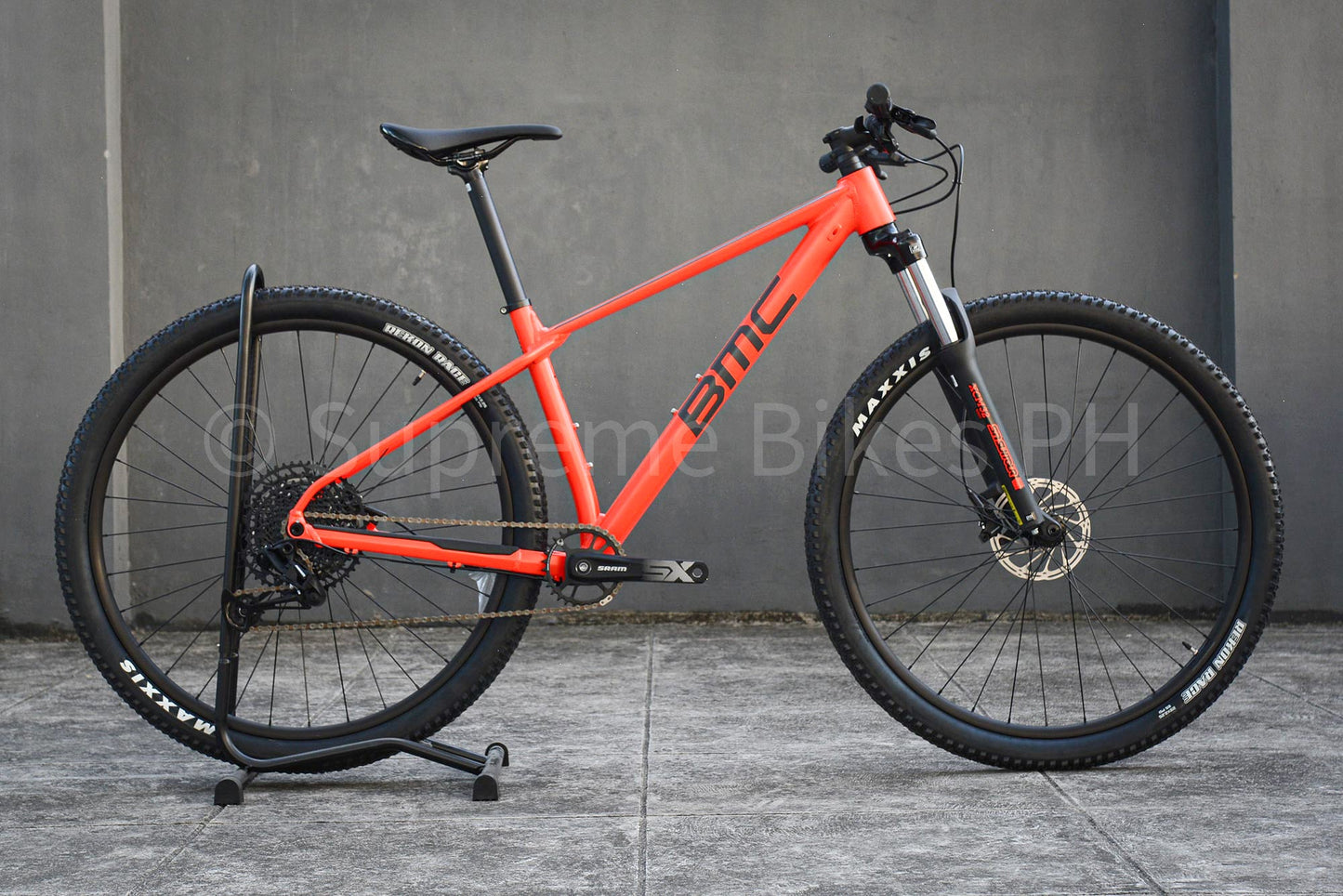

BMC Twostroke AL Four XC Hardtail Mountain Bike MTB SRAM SX Eagle 12-speed 29er - Red

₱85,000.00
₱85,000.00
Size

SKU:

Twostroke AL FOUR

SRAM SX Eagle Drivetrain
SR SUNTOUR XCM 32 Fork
XCD23 Wheels


Twostroke AL emulates the Twostroke 01’s performance in a refined Smoothweld Premium Aluminium frame. Inspired by the Fourstroke and a fighter jet, it offers the perfect blend of performance, functionality and aesthetics, with radical geometry, wide tire clearance and integrated protection to combat technical terrain. SRAM’s SX Eagle 12-speed groupset and Level brakes are matched with a Suntour XCM 32 fork, XCD23 wheelset and Vittoria Barzo tires.

Innovation

Radical Geometry

Technical Overview

  • Frame  Twostroke AL Premium Aluminium, Hydroformed • Internal Cable Routing • BSA Threaded Bottom Bracket • Post Mount Disc
  • Fork  SUNTOUR XCM 32
  • Chainwheel  SRAM SX Eagle 30T
  • Cassette  SRAM SX Eagle 11-50T
  • Chain  SRAM SX Eagle
  • Rear Derailleur  SRAM SX Eagle
  • Shifters  SRAM SX Eagle
  • Brakes  SRAM Level / SRAM Centerline Rotors (160/160 S-M, 180/160 L-XL)
  • Handlebar  Alloy 760mm
  • Stem  Forged 6061 Alloy
  • Seatpost  Alloy 31.6mm - 0mm Offset
  • Saddle  Selle Royal Seta
  • Hubs  SHIMANO MT400 / MT410
  • Rims  XCD23
  • Tires  Vittoria Barzo 29 x 2.25
  • Tire Clearance  58mm (Measured Width)
  • Weight  13.90kg / 30.64lb
  • Weight Limit  110kg / 242lb
  • ASTM Classification  Level 3

     Geometry

    Twostroke AL FOUR Cross Country Mountain Bike

    Size S M L XL
    Rider Height CM <170 170-182 180-192 >190
    Stack MM 588 598 608 623
    Reach MM (reach) 422.5 445 465 485
    Seat Tube MM (st) 410 440 480 510
    Top Tube MM (tt) 597 618 638 658
    Head Tube MM (ht) 87 93.5 106 122.5
    Seat Tube Angle (sa) 75.0 75.0 75.0 75.0
    Head Angle (ha) 67.0 67.0 67.0 67.0
    Rear Center MM (rc) 425 425 425 425
    Front Center MM (fc) 696 715 741 767
    Wheelbase MM (wb) 1112.5 1135 1161 1185
    BB Drop MM (drop) 64 64 64 64
    Fork Length MM (fl) 505 505 505 505
    Fork Rake MM (fr) 44 44 44 44
    Trail MM (trail) 109 109 109 109
    Crank Length MM 170 175 175 175
    Stem Length MM 60 60 60 70
    Bar Width MM 760 760 760 760
    Bar Rise MM 4 4 4 4
    Backsweep 9 9 9 9
    Standover Height mm 725 730 735 750
    Seatpost Length MM 350 400 400 400


    Technical Specs

    Frameset

    • Twostroke 01 premium aluminum, hydroformed, smoothwelded

    Technical Details

    • Round seatpost, 31.6 mm
    • Internal cable routing
    • ASTM level 3

    Sizes

    S, M, L, XL

    Frame Weight*
    1850 g

    Compatibility

    Frame, Fork and Seatpost

    • 1x drivetrain specific
    • BSA threaded bottom bracket
    • 31.6 mm dropper seatpostosts, stealth cable routing
    • Replaceable standard or direct mount rear derailleur hangers
    • 2x waterbottle mounts

    Brakes

    • Post mount, 160 mm

    Wheels and Axles

    • 29" x 58 mm tire clearance
    • 12x148 mm boost rear axle

    *Weight for the lightest finish, including complete hardware with size M frames
