BMC

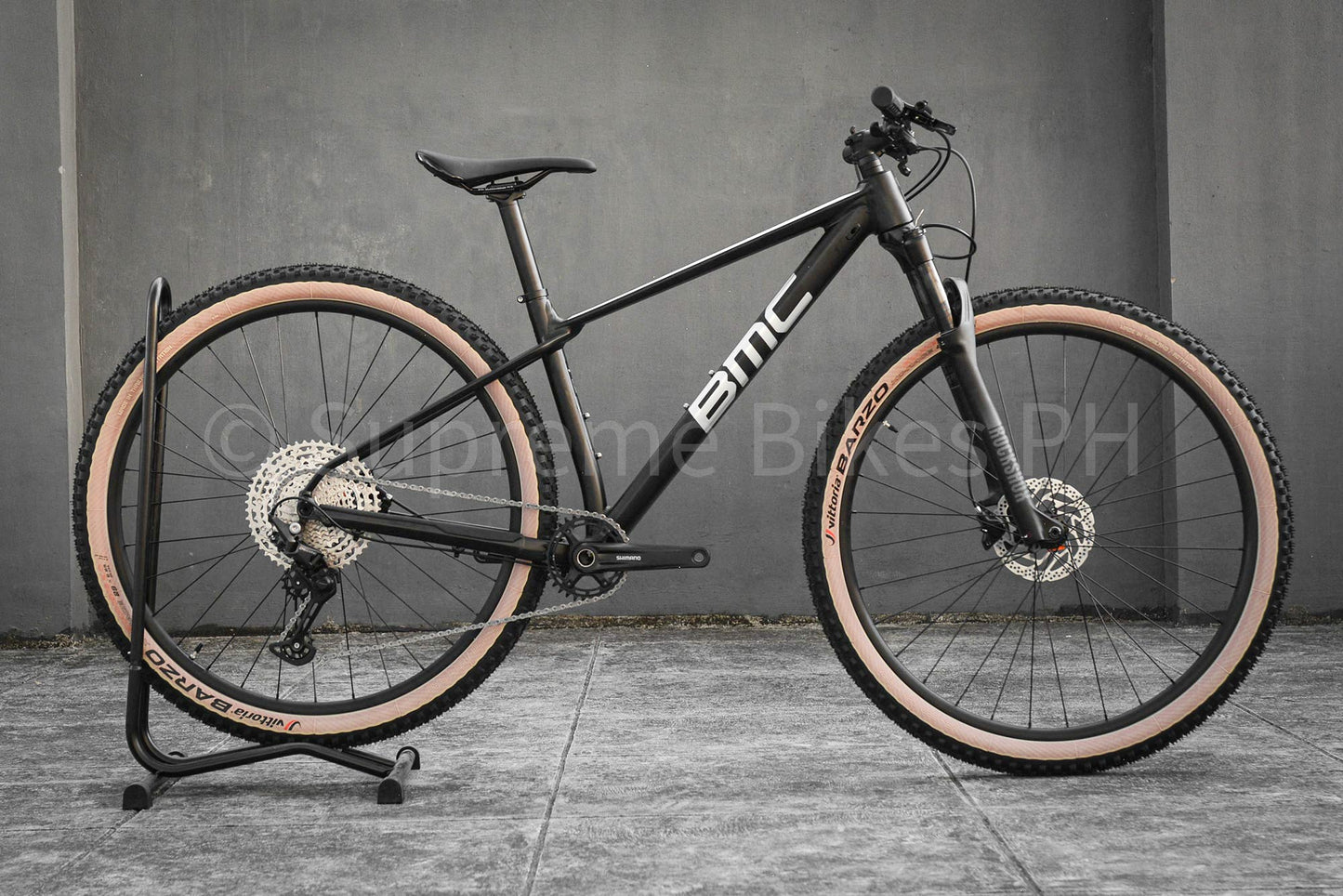

BMC Twostroke AL Three XC Hardtail Mountain Bike MTB Deore 12s 29er - Black

₱95,000.00
₱95,000.00
Size

SKU:

Twostroke AL THREE

SHIMANO Deore 12 spd Drivetrain
Rockshox Judy TK R Fork
XCD23 Wheels

Twostroke AL emulates the Twostroke 01’s performance in a refined Smoothweld Premium Aluminium frame. Inspired by the Fourstroke and a fighter jet, it offers the perfect blend of performance, functionality and aesthetics, with radical geometry, wide tire clearance and integrated protection to combat technical terrain. Headed by a RockShox Judy TK R fork, the 12-speed groupset is mainly Shimano Deore, with XCD23 wheels and 2.25” Vittoria Barzo tires.

Innovation


Technical Overview

  • Frame  Twostroke AL Premium Aluminium, Hydroformed, Smoothwelded
    • Internal Cable Routing
    • BSA Threaded Bottom Bracket
    • Post Mount Disc
  • Fork  Rockshox Judy TK R
  • Chainwheel  SHIMANO FC-MT510 32T
  • Cassette  SHIMANO Deore 12 spd 10-51T
  • Chain  SHIMANO Deore 12 spd
  • Rear Derailleur  SHIMANO Deore 12 spd
  • Shifters  SHIMANO Deore 12 spd
  • Brakes  SHIMANO BR-MT200 / SHIMANO SM-RT10 Rotors (160/160 S-M, 180/160 L-XL)
  • Handlebar  BMC MFB03 Alloy 750mm
  • Stem  Forged 6061 Alloy
  • Seatpost  BMC MSP03 - 31,6mm - 0mm Offset
  • Saddle  Selle Royal Seta
  • Hubs  SHIMANO MT400 / MT410
  • Rims  XCD23
  • Tires  Vittoria Barzo 29x2.25
  • Tire Clearance  58mm (Measured Width)
  • Weight Limit  110kg / 242lb
  • ASTM Classification  Level 3 Geometry

Twostroke AL FOUR Cross Country Mountain Bike\

Size S M L XL
Rider Height CM <170 170-182 180-192 >190
Stack MM 588 598 608 623
Reach MM (reach) 422.5 445 465 485
Seat Tube MM (st) 410 440 480 510
Top Tube MM (tt) 597 618 638 658
Head Tube MM (ht) 87 93.5 106 122.5
Seat Tube Angle (sa) 75.0 75.0 75.0 75.0
Head Angle (ha) 67.0 67.0 67.0 67.0
Rear Center MM (rc) 425 425 425 425
Front Center MM (fc) 696 715 741 767
Wheelbase MM (wb) 1112.5 1135 1161 1185
BB Drop MM (drop) 64 64 64 64
Fork Length MM (fl) 505 505 505 505
Fork Rake MM (fr) 44 44 44 44
Trail MM (trail) 109 109 109 109
Crank Length MM 170 175 175 175
Stem Length MM 60 60 60 70
Bar Width MM 750 750 750 750
Bar Rise MM 4 4 4 4
Backsweep 9 9 9 9
Standover Height mm 725 730 735 750
Seatpost Length MM 350 400 400 400


Technical Specs

Frameset

  • Twostroke 01 premium aluminum, hydroformed, smoothwelded

Technical Details

  • Round seatpost, 31.6 mm
  • Internal cable routing
  • ASTM level 3

Sizes

S, M, L, XL

Frame Weight*
1850 g

Compatibility

Frame, Fork and Seatpost

  • 1x drivetrain specific
  • BSA threaded bottom bracket
  • 31.6 mm dropper seatpostosts, stealth cable routing
  • Replaceable standard or direct mount rear derailleur hangers
  • 2x waterbottle mounts

Brakes

  • Post mount, 160 mm

Wheels and Axles

  • 29" x 58 mm tire clearance
  • 12x148 mm boost rear axle

*Weight for the lightest finish, including complete hardware with size M frames
