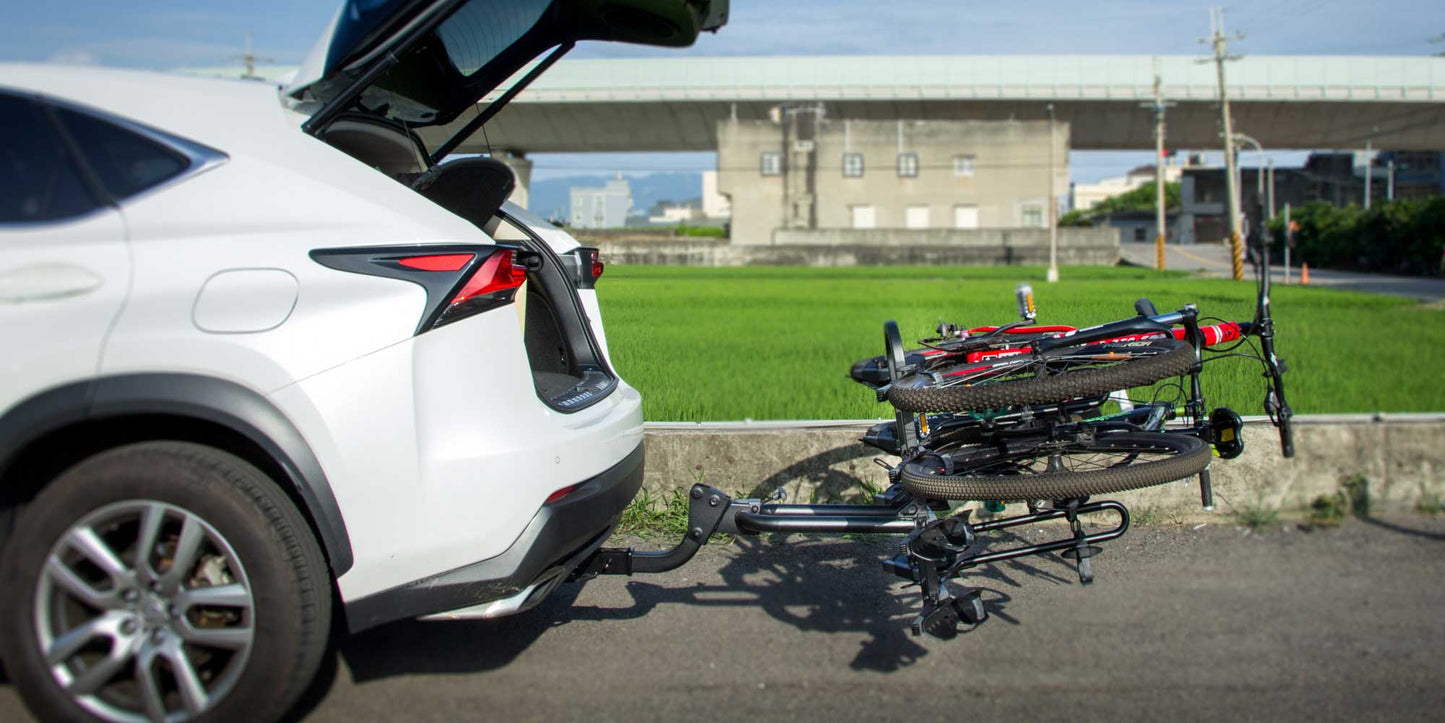

Buzz Rack Buzz Racer H4 Bike Carrier (4-Bikes)
SKU:
The BUZZRACER H4 offers easy mounting, basic functions and easy tilting function. The rubber padded ratchet cradles offer a great solution for carbon frames fitting as it does not apply pressure to the carbon tubes.
The BUZZRACER H is an improved version of the BUZZYBEE H with its balance tilting function, ratchet frame holder and locking features. The rack still folds up when not in use.
The mounts are safe for use with carbon fiber bikes
TECHNICAL SPECIFICATIONS
Max number of bikes: 2
Max weight per bike: 20kg (44lbs)
Max load capacity: 40kg (88lbs)
Max tire size: 3.25″
Max bike frame down tube size: diameter 75mm(3″)
Fits 1.25″: no
Fits 2″: yes
Dimensions (width x depth x height): 88 x 122x 86 cm
Weight: 18kg (39.6lbs)
Tilting: yes
Folds up: yes
Locks to the car: yes
Locks bikes: yes
