Overnighter, weekend-ride or long-awaited gravel trip: Step outside and enjoy the freedom to go anywhere. The adventure starts at your doorstep.
PRODUCT DETAILS

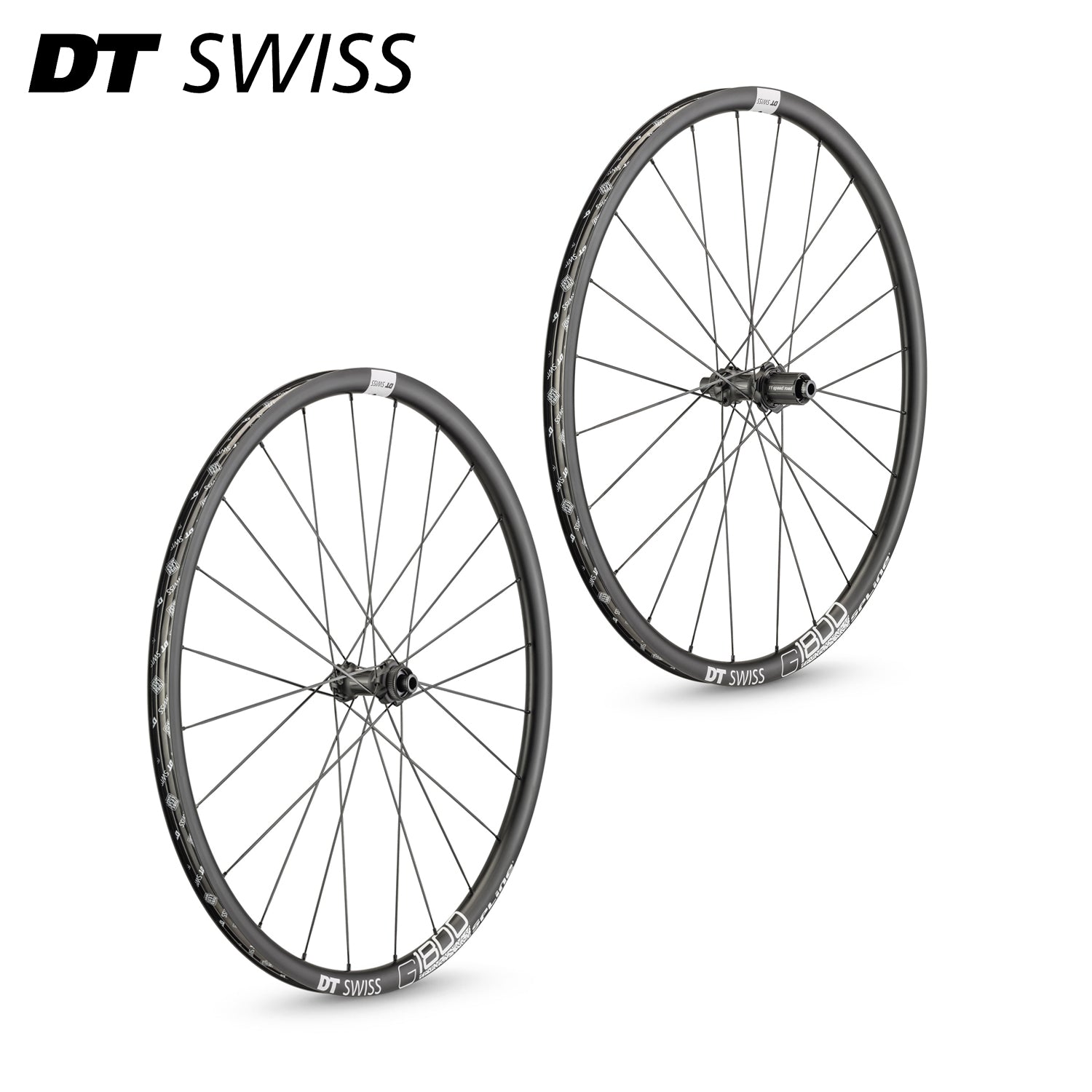

The entry into the world of gravel riding - the G 1800 SPLINE 25. If you want to give cycling a try and plan to do your first rides off-road, the G 1800 SPLINE 25 should be your ideal choice of wheels. Combining all the key advantages of our gravel segment wheels at a very attractive price point, these wheels may be your entry into the world of gravel riding. Leave beaten roads behind and opt for unexplored paths, the G 1800 SPLINE 25 will join you!
-
HUB TYPE: 370 with 3 Pawl
-
RIM: Aluminum, Hooked / Crotchet tubeless TC
-
RIM HEIGHT: 25 mm
-
SPOKES: DT aero comp® wide straightp, DT new aero® straightpull
TECHNOLOGY
We believe in the art of engineering and strive for sophistication in the product development process. Our guiding idea is to constantly push barriers with our inhouse developed technologies.
BEARING TECHNOLOGY
TUBELESS TECHNOLOGY
PRO LOCK TECHNOLOGY
FRONT WHEEL SPECIFICATION
General
- NET WEIGHT: 880g
- RECOMMENDED SYSTEM WEIGHT MAX.: 130kg
- ASTM CLASSIFICATION: 2
Rim
- MATERIAL: Aluminum
- RIM JOINT: Sleeve joint
- TIRE INTERFACE: Hooked/Crotchet Tubeless TC
- VALVE HOLE: Presta
- RIM DIAMETER: 29" / 700C
- RIM HEIGHT: 25mm
- INNER WIDTH: 24mm
- OUTER WIDTH: 28mm
HUB
- HUB TYPE: 370
- AXLE SYSTEM: 12mm Thru Axle
- BUILT-IN DIMENSION: 100mm
- BRAKE INTERFACE: Disc Center Lock
Spokes & Nipples
- SPOKES LEFT: DT new aero® Straightpull
- SPOKES RIGHT: DT new aero® Straightpull
- SPOKE PATTERN: Two-cross (1:1)
- NIPPLES: DT ProLock Squorx ProHead Aluminum
Inclusive
- INCLUSIVE: Tubeless tape 27 mm, Tubeless valve road 32 mm
REAR WHEEL SPECIFICATION
General
- NET WEIGHT: 1015g
- RECOMMENDED SYSTEM WEIGHT MAX.: 130kg
- ASTM CLASSIFICATION: 2
Rim
- MATERIAL: Aluminum
- RIM JOINT: Sleeve Joint
- TIRE INTERFACE: Hooked / Crotchet Tubeless TC
- VALVE HOLE: Presta
- RIM DIAMETER: 29" / 700C
- RIM HEIGHT: 25mm
- INNER WIDTH: 24mm
- OUTER WIDTH: 28mm
HUB
- HUB TYPE: 370
- AXLE SYSTEM: 12mm Thru Axle
- BUILT-IN DIMENSION: 142mm
- BRAKE INTERFACE: Disc Center Lock
- CASSETTE INTERFACE: Shimano ROAD
- FREEHUB BODY: Shimano ROAD 11SP Alu/Steel ASS11 (Mounted)
- FREEHUB SYSTEM: 3 Pawl
Spokes & Nipples
- SPOKES LEFT: DT aero comp® wide Straightpull
- SPOKES RIGHT: DT aero® Straightpull
- SPOKE PATTERN: Two-Cross (1:1)
- NIPPLES: DT ProLock Squorx ProHead Aluminum
Inclusive
INCLUSIVE: Tubeless tape 27 mm, Tubeless valve road 32 mm, SRAM XDR Road freehub body kit
