EXAR DB508 Carbon Fiber Wheelset Ultra 2023

EXAR Ultra wheelset is designed for ultimate performance. The wheelset is fully equipped with top-level materials from spokes to bearing, creating elaborate hub and rim. No matter in terms of appearance, quality or speed, EXAR Ultra has been improved to a higher level. The difference in details will take riders to the lead on the field.

Exquisite Design, Ingenious Interaction

EXAR Ultra carbon fiber wheelset applies HI-MOD carbon fiber, following the integral and systematic design. The primal materials allow great reduction on weight while retaining outstanding stiffness. This helps you get a smooth start and easier acceleration. *The wheelset weight in the table does not include the weight of quick-release skewer and rim tape; A tolerance of ±3% applies to the weight, and the actual wheelset weight should prevail.

Lower Front And Higher Rear Wheel

Combine High Inertia And Stability

The wheelset combines lower front wheel and higher rear wheel. While the rear wheel maintains high inertia, the front wheel still has excellent controllability. This avails you to ride efficiently and stably.

• DB405 Ultra Optimal choice for climbing
• DB508 Ultra Balanced choice for both climbing and cruising
• DB607 Ultra Optimal choice for cruising

Full Carbon Fiber Spokes with Scientific Lacing

Contribute Ultra-Stiffness

EXAR Ultra carbon fiber wheelset adopts HI-MOD carbon fiber spokes from VONOA. Each spoke weighs only 2.8g and has better stiffness. Compared with top steel spokes, Ultra’s spoke is 30% lighter and can withstand 30% more tensile force. Lower strength loss of transmission brings higher driving efficiency.

Featuring latest patent, we hide the metal accessories on spokes, while making it wider and thinner. Thus, you can get lower wind resistance with smooth and simplified design.

 The wheelset applies 2:1 balanced lacing pattern, which distributes tension perfectly.

Flat Engagement Ratchet

Ensure Stable Performance

The EXAR Pro series features a 36-tooth flat ratchet system, which has greater engagement force with larger surface. This design enhanced durability of ratchet, ensuring fast and precise engagement with improved stability. The rotating sound is smoother and more consistent with use of flat wire spring. Additionally, the ratchet system allows for easy replacement with other ratchets of varying tooth counts, offering increased versatility and customization.

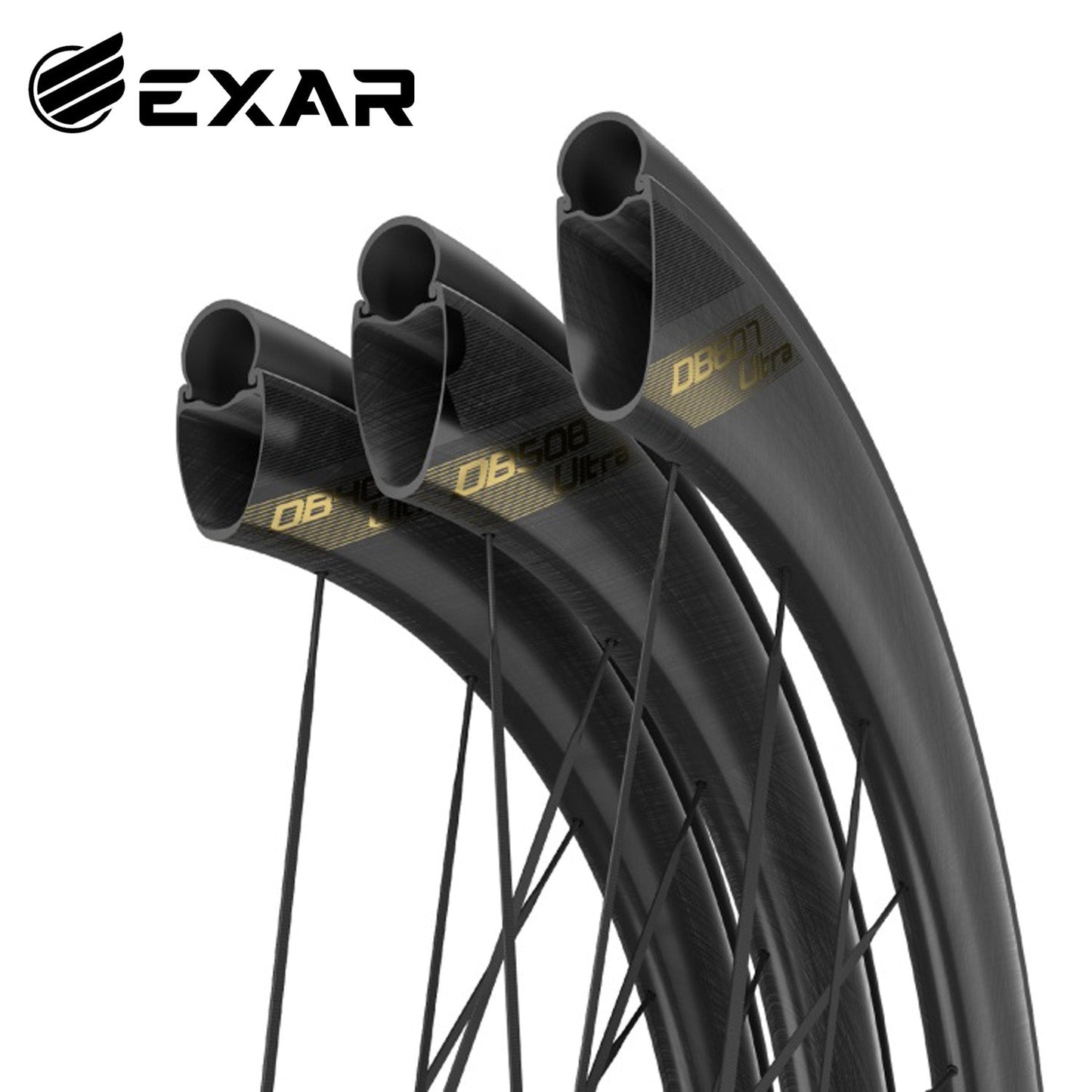

30/32mm Wide Fat Rim

Aerodynamic And Comfortable

The external rim width of DB405 and DB508 is 30mm, that of DB607 is 32mm for front wheel and 30mm for rear wheel.

The  internal width of all are 23mm. It ensures optimal aerodynamic performance in complex wind conditions, improving stability in crosswinds as well.

After installing the 28-32c tire, the contact surface between tire and rim is flat. As a result, It creates a flatter aerodynamic surface and enhances cycling comfort.

*The wheelset rim width is measure at the widest part of the wheel.

Elaborate Hub Design

Details Reveal Optimal Configuration

• Improve flange diameter: The flange diameter has been calculated scientifically in terms of the stiffness of carbon fiber spokes. We reduce the amount of stress concentration point where spoke contacts with hub, thus improving driving stiffness and extending endurance.
• Smooth edging on bearing surface: The contact surface of bearing and body is processed with smooth edges to create precise synergy.
• Scientific WR size: The WR size of the rear hub is 18.2mm. This ensures spoke tension of drive side and non-drive side to be similar, achieving excellent lateral stiffness.

Ceramic Bearings, Smooth And Durable

Compared to steel, ceramic is light-weight with low resistance, which can be used to make smoother bearings. A well-made ceramic bearing has lower resistance, thus saving you energy and allowing rapid acceleration.

More Powerful Designs

EXAR Ultra wheelsets have passed UCI impact tests. After applying an energy of 40 J on the bare carbon rim, the deviation complies with UCI standard.

The wheelset is compatible with tubeless tire and clincher tire. It comes with tubeless rim tape and rim plugs. While installing clincher tire, you could use rim plugs to reduce weight.

The dynamic balance is exclusively designed for TPU inner tube. You will enjoy a stable cycling at high speed.

Specifications

In the Box

• Carbon fiber front wheel*1
•  Carbon fiber rear wheel*1
•  Tubeless rim tape*2
•  Rim plug*50
•  Tubeless tire valve*2
•  Manual*1
