Mongoose Guide Sport Gravel Bike - Sunset Orange
SKU:
Couldn't load pickup availability
GUIDE SPORT 2022
M12201M10
- Tectonic® T2 aluminum frame with 9 mm QR; aluminum fork with 12 mm thru axle
- 2 x 9 drivetrain with Samox® 46/30T crank and Shimano® Sora derailleurs
- Promax® DSK-330 mechanical disc brakes
Adventure begins where the pavements ends, and the Guide is ready to go wherever the ride may take you. An evolution of the Selous, the Guide features a more relaxed, upright geometry for more comfort whether you’re commuting to work or bikepacking across the country.
SPECIFICATIONS
FRAME Tectonic T2, aluminum, 700c adventure geometry, internal cable routing, 9 mm x 142 mm dropout, replaceable hanger, tapered headtube
FORK Mongoose, 700c, aluminum steerer, 12 mm x 100 mm, QR
CRANK Samox TAM31-232, aluminum, 46/30T
CHAIN KMC Z99
BOTTOM BRACKET Samox, external, 3-piece, threaded 68 mm shell
SHIFTERS Shimano Sora ST-R3000, 2 x 9
REAR COG Sunrace, 9-speed, 11-34T
FRONT DERAILLEUR Shimano Sora FD-R3000, band clamp
REAR DERAILLEUR Shimano Sora RD-R3000
RIMS WTB ST-19, aluminum double wall, 19 mm ID, 32H, tubeless compatible,
FRONT HUB Xposure, aluminum, ball bearing, 9 mm x 100 mm, 32H, 6-bolt
REAR HUB Xposure, aluminum, ball bearing, 9 mm x 135 mm, 32H, 6-bolt
SPOKES 14G, stainless steel
TIRES Kenda Small Block, 700 x 47c, wire bead
PEDALS Mongoose, nylon
BRAKES Promax DSK-330 flat mount, mechanical, aluminum, 160 mm rotor
HANDLEBAR Xposure, aluminum, 450 mm - 510 mm width, 31.8 mm clamp
STEM Xposure diecast, threadless, 90 mm/100 mm, 7°, 31.8 mm clamp
HEADSET Threadless, ZS44/ZS56, retainer bearing
SEAT POST Xposure, aluminum, 350 mm, zero offset, 31.6 mm

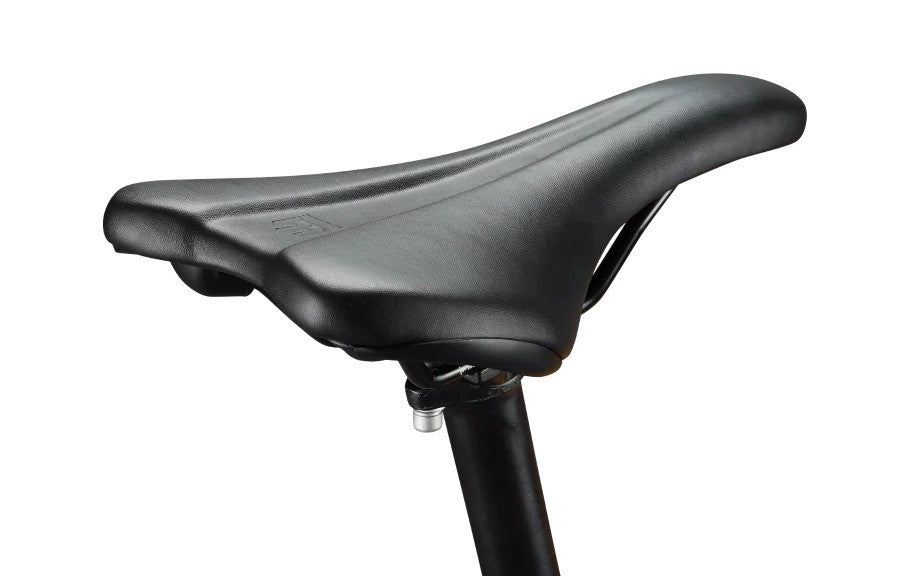

SADDLE Mongoose adventure, steel rails
GRIPS Xposure, non-slip tape
SIZES SM, MD, LG, XL
EXTRAS Frame bag
GEOMETRY & SIZING
| SM | MD | LG | XL |
|---|
|
|
|
|
|
|
|
|---|---|---|---|---|---|
| A | HEAD TUBE ANGLE (DEGREES) | 70.5 | 70.5 | 70.5 | 70.5 |
| B | SEAT TUBE ANGLE (DEGREES) | 74 | 74 | 74 | 74 |
| C | HORIZONTAL TOP TUBE LENGTH (MM) | 522 | 550 | 570 | 587 |
| D | SEAT TUBE LENGTH (MM) | 460 | 480 | 500 | 520 |
| STANDOVER HEIGHT (MM) | 783 | 801 | 817 | 836.9 | |
| F | HEAD TUBE LENGTH (MM) | 125 | 145 | 165 | 185 |
| G | CHAINSTAY LENGTH (MM) | 460 | 460 | 460 | 460 |
| H | FORK OFFSET (MM) | 51 | 51 | 51 | 51 |
| I | BOTTOM BRACKET DROP (MM) | 70 | 70 | 70 | 70 |
| J | WHEELBASE (MM) | 1061.6 | 1064.9 | 1086.8 | 1104.6 |
| K | STACK (MM) | 582.3 | 594.2 | 611.2 | 630.1 |
| L | REACH (MM) | 371 | 379.6 | 394.7 | 406.3 |
| STEM LENGTH (MM) | 90 | 90 | 100 | 100 | |
| BAR WIDTH (MM) | 450 | 450 | 510 | 510 | |
| SEAT POST SIZE (MM) | 27.2 | 27.2 | 27.2 | 27.2 |
