Pinarello

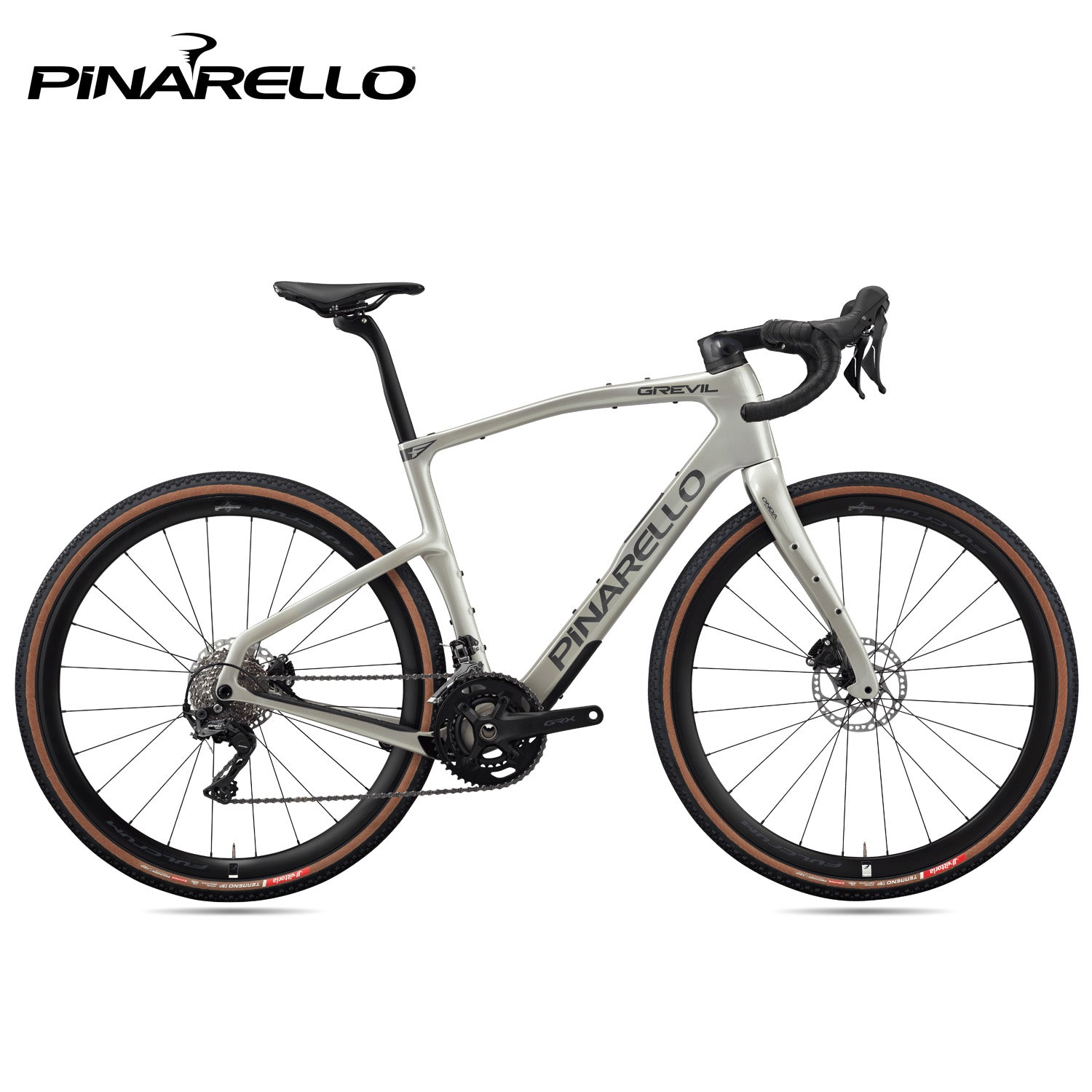

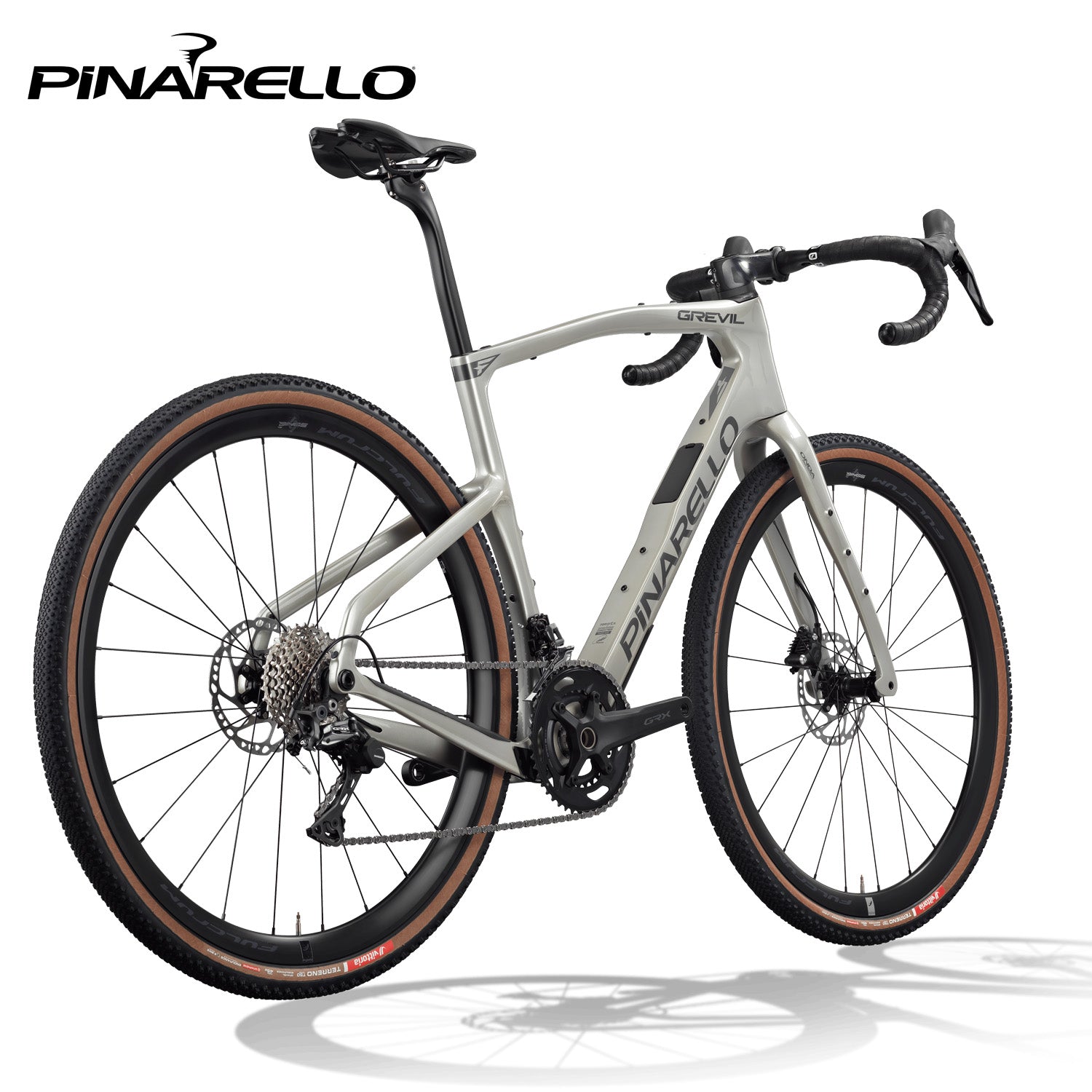

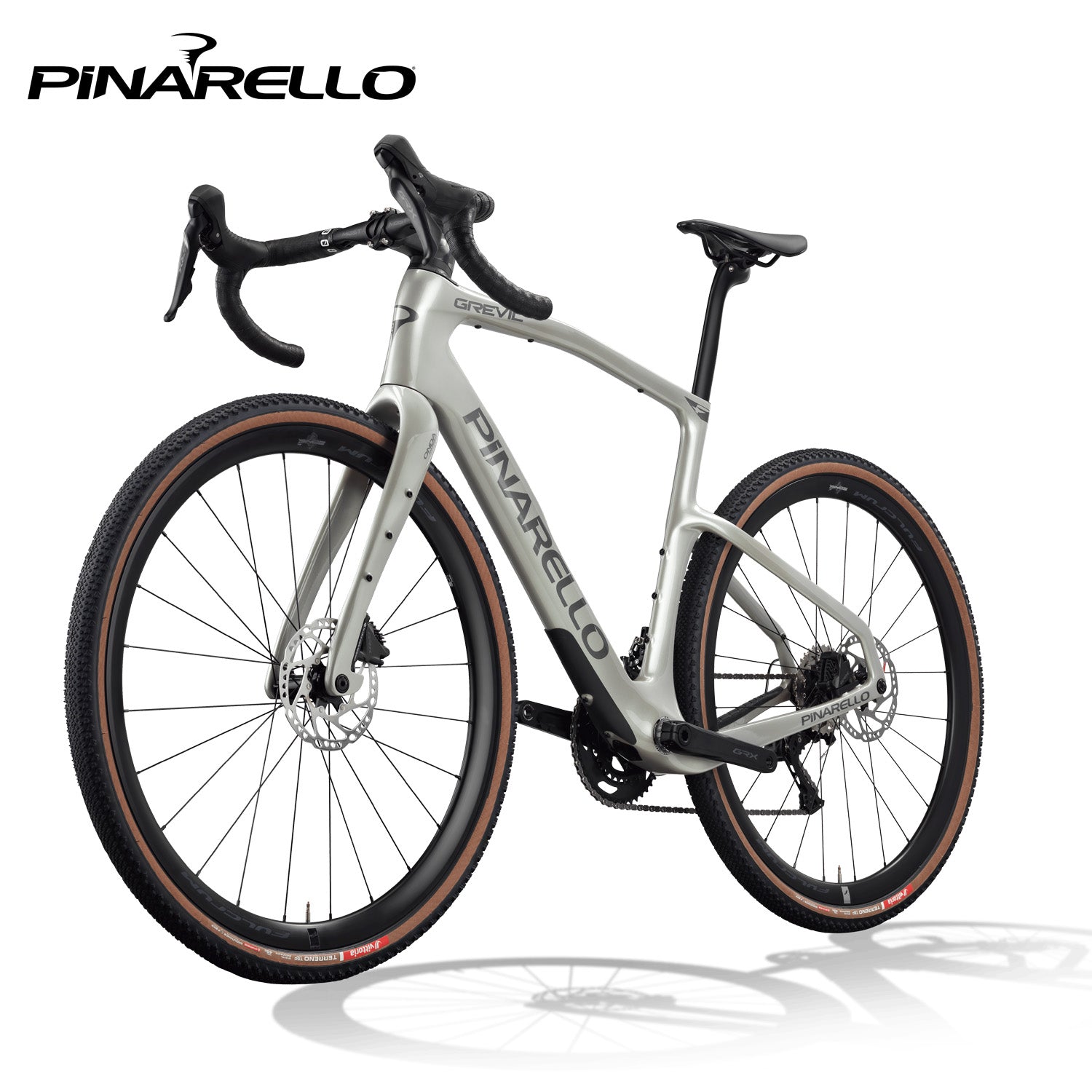

Pinarello Grevil F1 Gravel Bike Shimano GRX 610 - Comet Silver

₱285,000.00
₱285,000.00
Size

SKU:

NEW GREVIL F1 SHIMANO GRX 610

TAILORED TO PERFORM EVERYWHERE

The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.

NEW GREVIL F1 SHIMANO GRX 610

INNOVATION

  • SOLO DYNAMICS
  • FRAME BAG
  • GRAVEL TT BARS
  • ADAPTIVE SEATPOST
  • TWIN ARMS
  • DOWN TUBE
  • NEW ONDA FORK

SOLO DYNAMICS

The aerodynamics of the new Grevil F are designed to excel in long-distance solo races. Precisely for this reason we have developed all the accessories to be as aerodynamic as possible to save as many watts as possible. This new concept of accessories to facilitate solo racing includes: the TT gravel bars, the frame bag, the racing bento, the toolbag, and for ultra-long distances, the rack bag.

FRAME BAG

Designed to be both aero and attach securely, the new frame bag uses a magnetic system from Fidlock to attach to the frame. This lightweight solution ensures total balance and reliability over rough terrain. Ease of use allows fast access for quick service stops during races.

GRAVEL TT BARS

  • Clamped solution on rounded handlebar Jaguar.
  • Adjustable reach and stack on extension and pads.
  • Computer mount integrated into the extension.
  • Adjustable tilting.

ADAPTIVE SEATPOST

The new adaptive seatpost has a longitudinal flex of 10 mm, is lighter and more efficient when it comes to absorb vibration.

TWIN ARMS

The new TWIN ARMS seatstays solution works in conjunction with the adaptive seatpost to absorb vibration, ensuring exceptional traction even on the roughest trails.

DOWN TUBE

The down tube has been specially designed to improve aerodynamic efficiency when using 750 ml bottles. The inclusion of storage space, easily accessible without having to remove the bottle cage, to fit an integrated tool bag inside the down tube removes the need to use a saddle bag, which also improves aerodynamics to save precious watts.

NEW ONDA FORK

Elegantly shaped with a sleek profile and calculated curvature, the Onda Fork enhances the ride quality with its compliance and improves handling thanks to its reduced weight compared to the previous Grevil F.

GEOMETRIES

CF CC L I A[°] B[°] F P T D R G WB REACH STACK TRAIL
410 470 530 125.6 74.5 70.25 603.9 430 115 72 55 405 1023.5 368.4 553.2 72.4
440 500 545 137.8 74 70.5 614.5 430 130 72 55 405 1034.2 376.1 568.3 70.7
470 530 558 148.3 73.75 70.75 625.8 430 150 67 55 405 1047 383.7 583.2 69
490 550 570 156.2 73.5 71.75 621.9 430 160 67 50 405 1043 390.4 598.4 67.5
510 575 587 168.1 73 72 631.9 430 175 67 50 405 1053.1 398.2 613.6 65.9
545 600 607 180.4 72.5 72.25 644.3 430 195 67 50 405 1065.5 406.9 633.7 64.2

NEW GREVIL F1 SHIMANO GRX 610 Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK, TRAIL (45MM TIRE)

ALL COMPONENTS

FRAME SET

  • FRAME: TORAY T600 UD
  • FORK: F Onda Fork with ForkFlap™, Tapered head tube

DRIVETRAIN

  • CRANKSET AND CHAINRINGS: SHIMANO GRX 610 2x12
  • CASSETTE: SHIMANO GRX
  • CHAIN: SHIMANO GRX
  • BOTTOM BRACKET: SRAM BB DUB ITALIAN 70mm ROAD WIDE

BRAKES

  • FRONT BRAKE DISC: Shimano GRX, 2 pistons caliper, 160mm rotor
  • REAR BRAKE DISC: Shimano GRX, 2 pistons caliper, 160mm rotor

COCKPIT

  • HANDLEBAR: JAGUAR XA GR TICR
  • STEM: TIGER ALU AERO TICR
  • BAR TAPE: Bar Tape MOST Ultragrip evo 3mm - Black
  • SADDLE: Most Lynx My26
  • SEATPOST: D-SHAPE SEATPOST
  • SEAT CLAMP: classic seat clamp

WHEELS AND TIRES

  • TYRES DISC: VITTORIA TERRENO T50 45
  • WHEELSET DISC: FULCRUM SONIQ AL
  • AXLES DISC: NEW MOST Ultra Light Custom Axle 12x100 & 12x142, tool free removal
