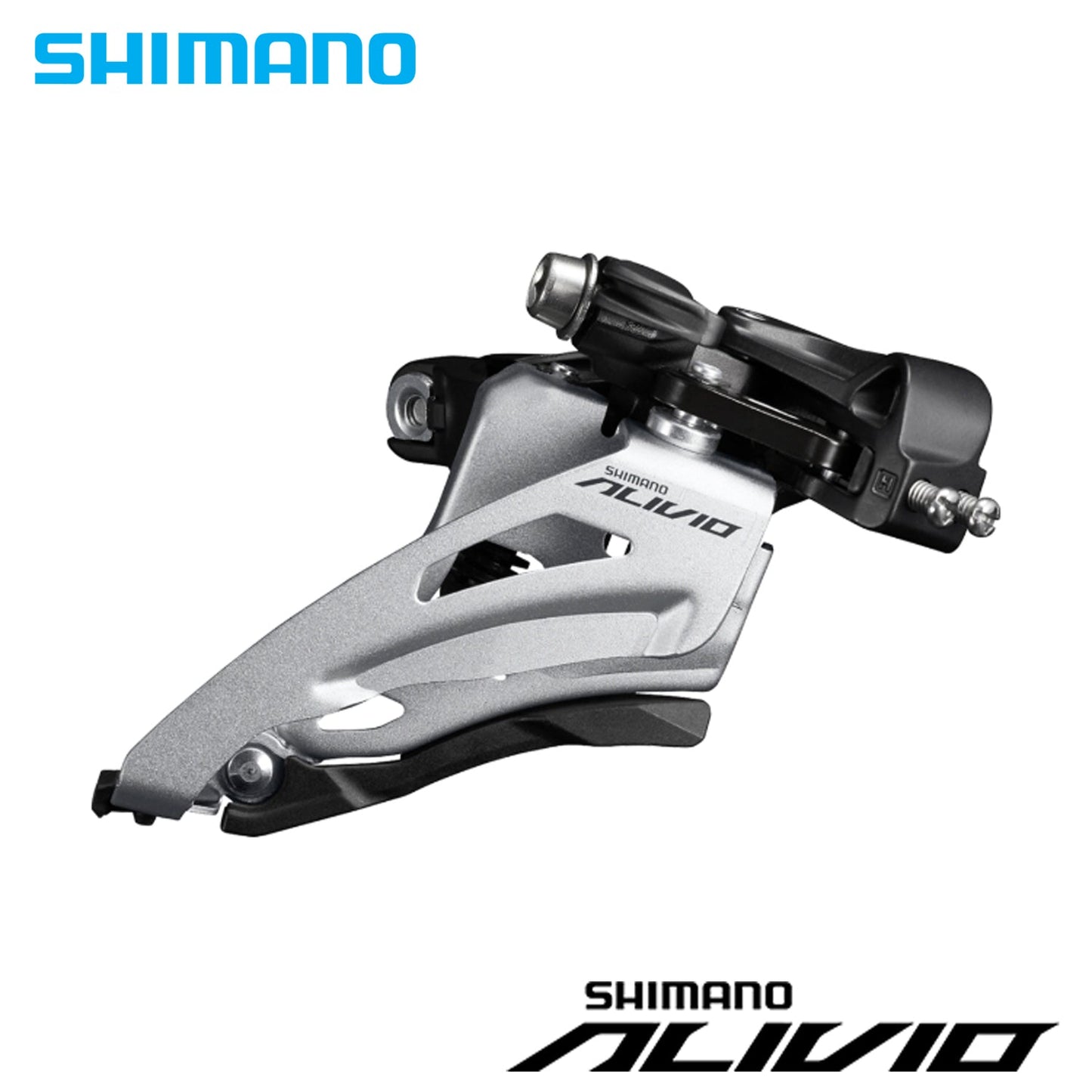

Shimano Alivio FD-M3120-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x9-speed

₱1,050.00
₱1,050.00

SKU:

FD-M3120-M

SHIMANO ALIVIO - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x9-speed

The SHIMANO ALIVIO FD-M3120 2x9-speed front derailleurs use SHIMANO's new SIDE SWING for enhanced cable routing, light action, and smooth operation. The new design also increases clearance for large wheels and short chain stays.

  • For front double chainring
  • Smooth and quiet front shifting on the trail
    • More powerful outward shifting
    • Wider traction range reduces chain rub for rear suspension bikes
    • Extra wide range with front double 36-22T
  • Wide frame mounting compatibility
    • Available in D, E, and M-type mounts
    • *M type mount requires adapter (ø34.9 mm)
  • Compatible with 2.3-inch tire on wider rims
  • 48.8 mm chainline
MODEL NO FD-M3120-M
SERIES SHIMANO ALIVIO M3100 Series
Color Series color
Action_SIDE SWING ✔
Angled clamp band design ✔
Angled stroke adjust screw ✔
Cable route type_Front-Pull ✔
Chain line (mm) 48.8
Chain stay angle (deg.) 64-69
Compatible chain CN-HG53 9-speed
Link bushings 4
Mount_Clamp Band (mm)_28.6 X (w/ S size adapter)
Mount_Clamp Band (mm)_31.8 X (w/ M size adapter)
Mount_Clamp Band (mm)_34.9 ✔
Top gear teeth 36T
Total capacity 14T
Front speeds 2
Rear speeds 9
