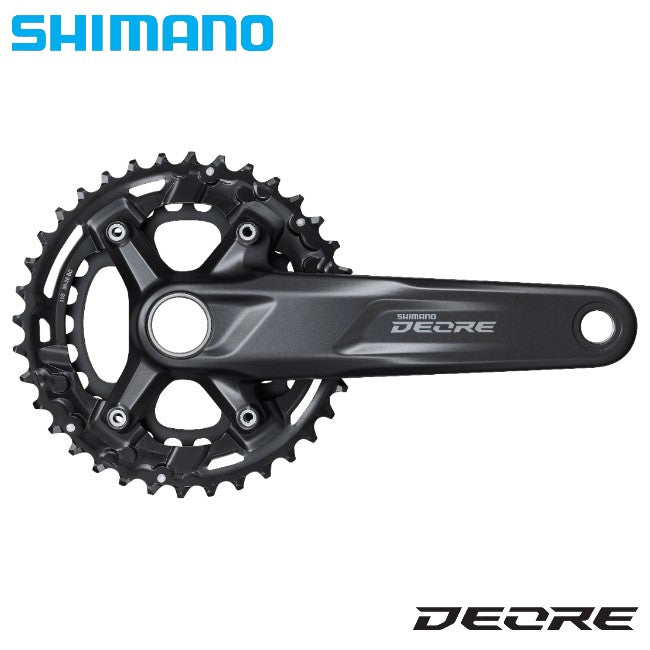

The SHIMANO DEORE FC-M5100-2 mountain bike crank delivers precise and reliable shifting for 2x11-speed drivetrains. This 2-piece crank offers a 36-26T gear combination and a 48.8 mm chainline.

FEATURES

2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently

Extra wide range with front double 36-26T



PRODUCT SPECIFICATIONS

MODEL NO	FC-M5100-2
SERIES	DEORE M5100 Series
Color	Series Color
2-PIECE CRANKSET	✔

Chainring combination	36-26T
Compatible bottom bracket type_Outboard	✔
Crank fixing screw included	✔
Crank arm length (mm)_170	✔
Crank arm length (mm)_175	✔
Spider/Gear arms	4
Optional chain guard_Without chain/bash guard	✔
Recommended bottom bracket_Press-fit	BB-MT500-PA
Recommended bottom bracket_Threaded (normal)	BB-MT501
Threaded bottom bracket shell width (mm)_68	✔
Threaded bottom bracket shell width (mm)_73	✔
Q-factor (mm)	178.5
Chain line (mm)	48.8
Compatible chain	LINKGLIDE, HG 11-speed
P.C.D. (mm)	96/64
Rear speeds	11
O.L.D._QR/Nut (mm)	135
O.L.D._Thru (mm)	142
