Shimano

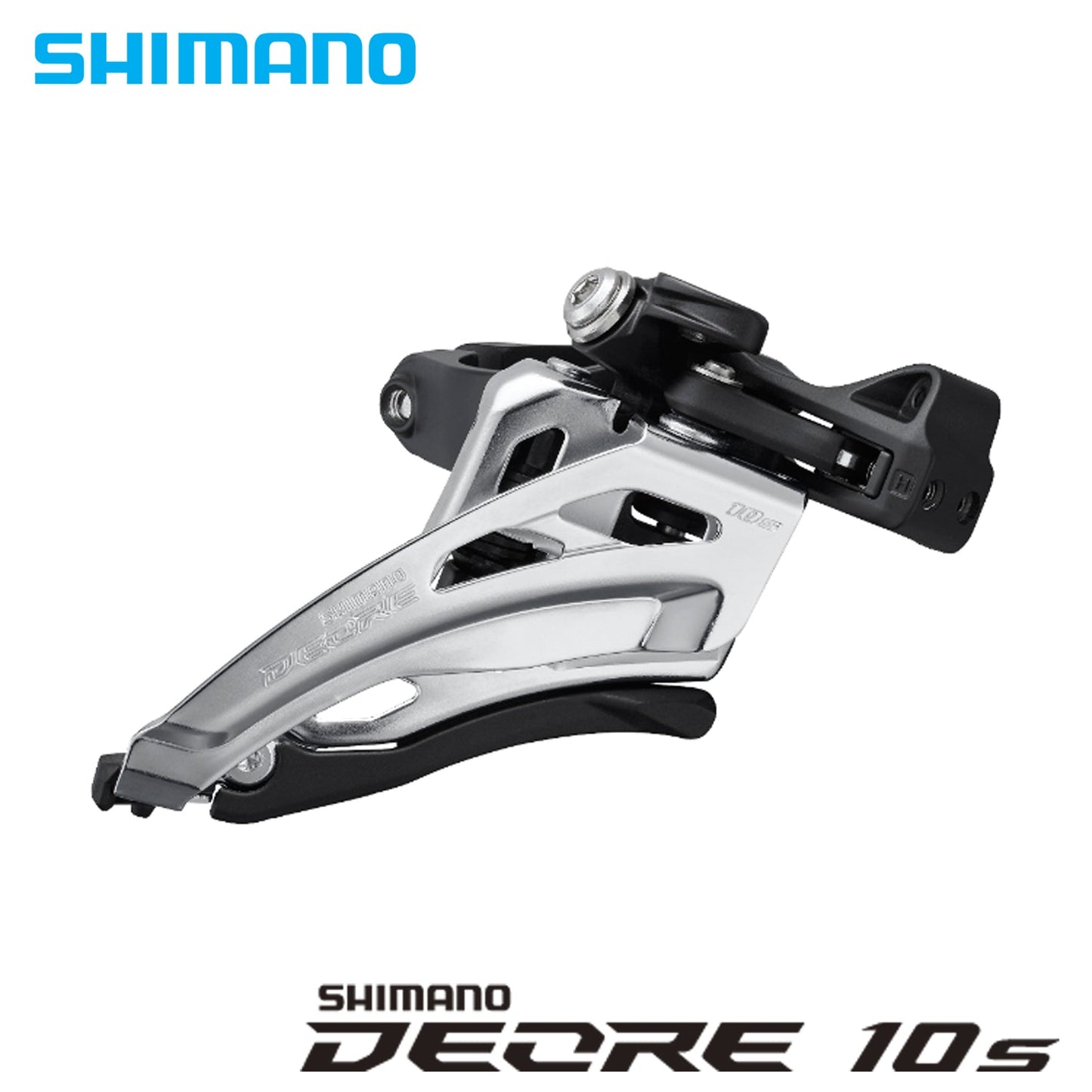

Shimano Deore FD-M4100-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x10-speed

₱1,290.00
₱1,290.00

SKU:

FD-M4100-M

SHIMANO DEORE - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x10-speed

The SHIMANO FD-M4100 2x10-speed front derailleurs use SHIMANO's new SIDE SWING technology for enhanced cable routing, light action, and smooth operation. The new design also increases clearance for large wheels and short chain stays.

  • Smooth and quiet front shifting on the trail
    • More powerful outward shifting
    • Wider traction range reduces chain rub for rear suspension bikes
    • Extra wide range with front double 36-26T
  • Wider tire clearance
    • Compatible with 2.3-inch tire on wider rims
  • Different options available
    • Available in D, E, and M-type mounts
    • *M type mount requires adapter (ø34.9 mm)
    • One spec for 48.8 mm & 51.8 mm chainline
MODEL NO FD-M4100-M
SERIES DEORE M4100 Series
Color Series color
Remarks * S-size adapter is available in OTC package only.
Action_SIDE SWING ✔
Angled clamp band design ✔
Angled stroke adjust screw ✔
Cable route type_Front-Pull ✔
Chain line (mm) 48.8/51.8
Chain stay angle (deg.) 66-69
Compatible chain HG-X 10-speed
Link bushings 4
Mount_Clamp Band (mm)_28.6 - *
Mount_Clamp Band (mm)_31.8 X (w/ M size adapter)
Mount_Clamp Band (mm)_34.9 ✔
Top gear teeth 36T
Total capacity 10T
Front speeds 2
Rear speeds 10
