Shimano

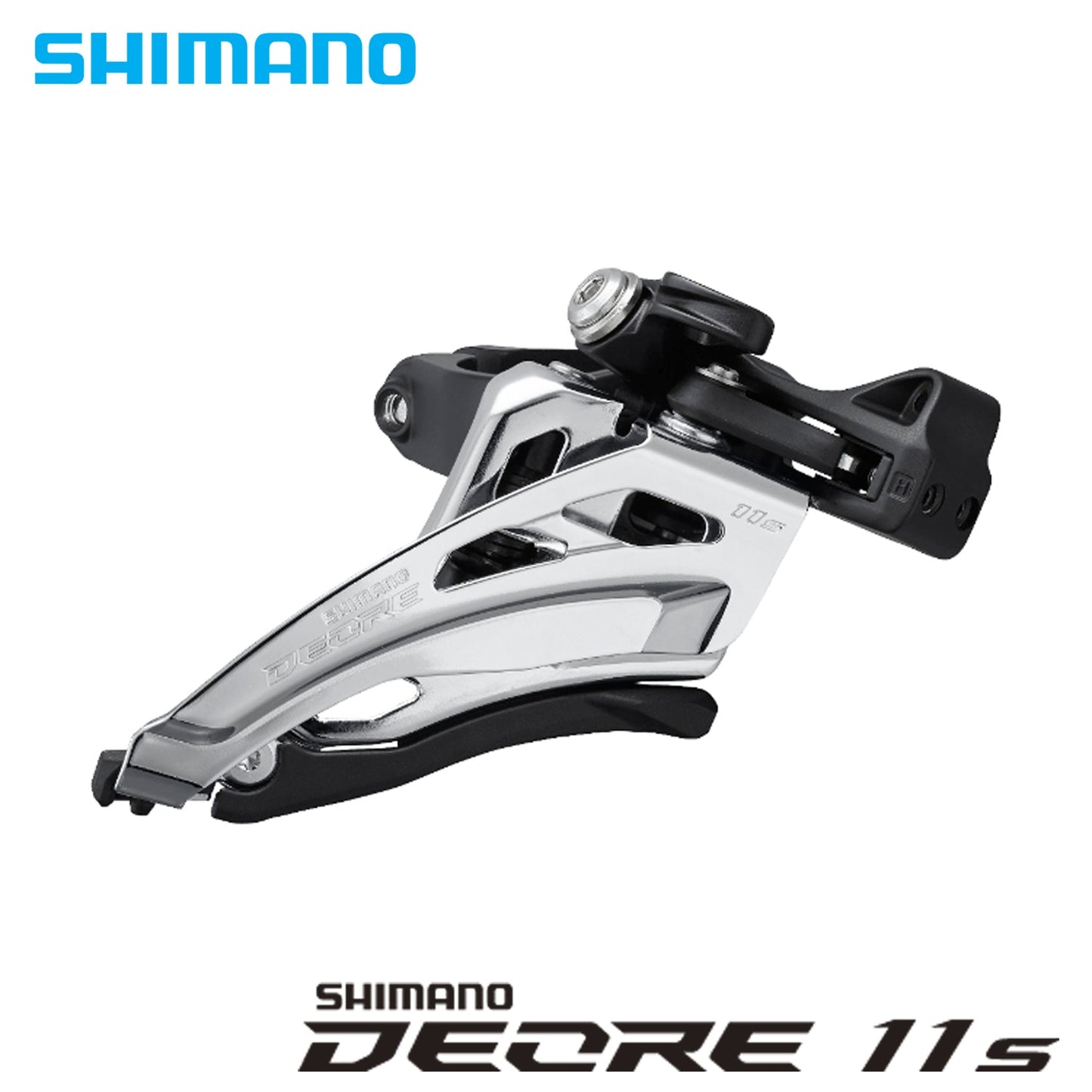

Shimano Deore FD-M5100-M Front Derailleur - SIDE SWING - Clamp Band Mount - 2x11-speed

₱1,405.00
₱1,405.00

SKU:

FD-M5100-M

SHIMANO DEORE - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x11-speed

Delivering quiet and smooth shifting, SHIMANO's FD-M5100 2x11 front derailleurs feature SHIMANO's new SIDE SWING technology. The new design offers enhanced cable routing, light action, and increases clearance for large wheels and short chain stays.

  • Smooth and quiet front shifting on the trail
    • More powerful outward shifting
    • Wider traction range reduces chain rub for rear suspension bikes
    • Extra wide range with front double 36-26T
  • Wider tire clearance
    • Compatible with 2.3-inch tire on wider rims
    • One spec for 48.8 mm & 51.8 mm chainline
  • Different options available
    • Available in D, E, and M-type mounts
    • *M type mount requires adapter (ø34.9 mm)
MODEL NO FD-M5100-M
SERIES DEORE M5100 Series
Color Series color
Remarks * S-size adapter is available in OTC package only.
Action_SIDE SWING ✔
Angled clamp band design ✔
Angled stroke adjust screw ✔
Cable route type_Front-Pull ✔
Chain line (mm) 48.8/51.8
Chain stay angle (deg.) 66-69
Compatible chain HG-X11 11-speed
Link bushings 4
Mount_Clamp Band (mm)_28.6 - *
Mount_Clamp Band (mm)_31.8 X (w/ M size adapter)
Mount_Clamp Band (mm)_34.9 ✔
Top gear teeth 36T
Total capacity 10T
Front speeds 2
Rear speeds 11
