Shimano

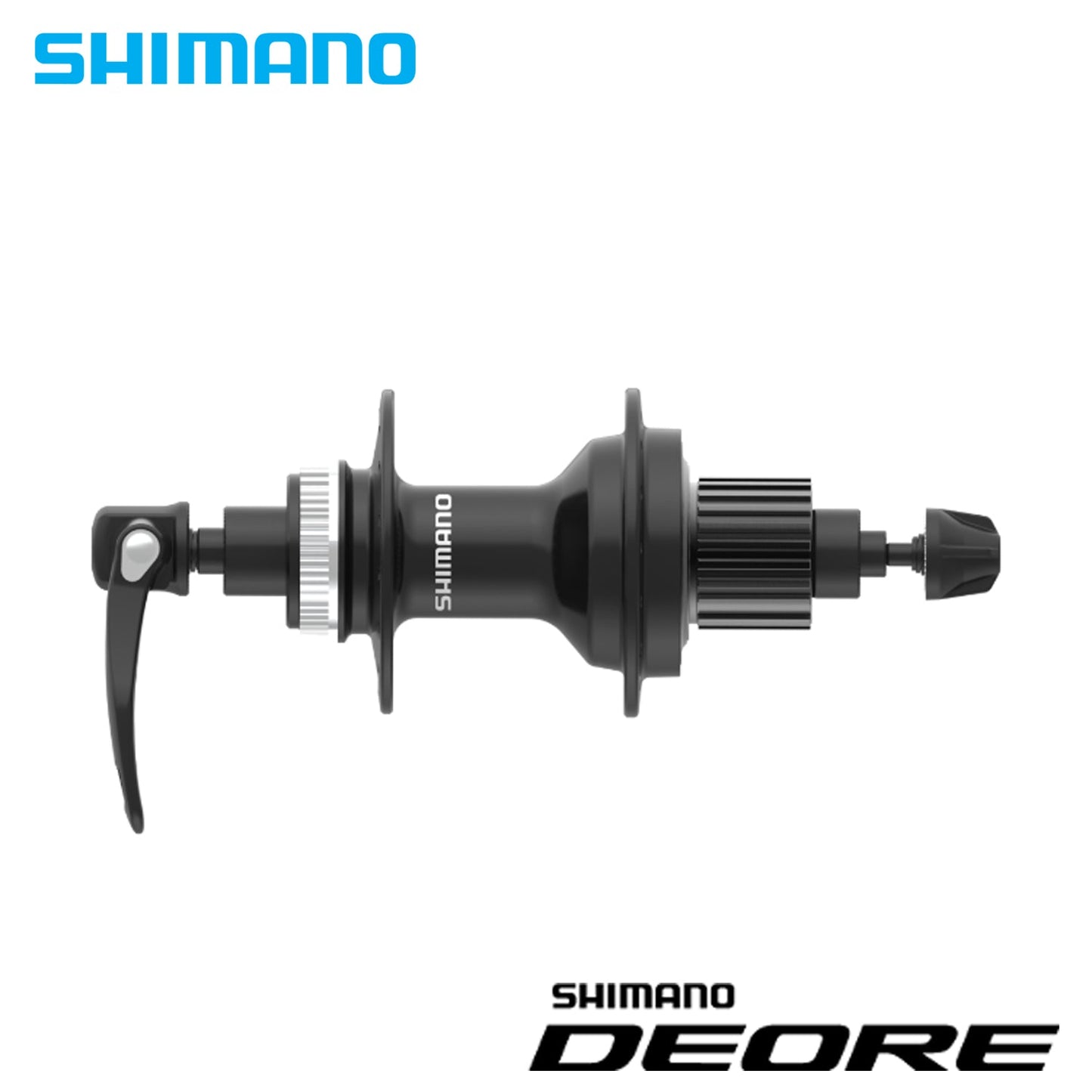

Shimano Deore FH-MT401 Rear FREEHUB - MICRO SPLINE - CENTER LOCK - Disc Brake - Quick Release - 135 mm O.L.D. - 12-speed - 32H

₱1,730.00
₱1,730.00

SKU:

FH-MT401

SHIMANO DEORE - Rear FREEHUB - MICRO SPLINE - CENTER LOCK - Disc Brake - Quick Release - 135 mm O.L.D. - 12-speed

SHIMANO DEORE Rear FREEHUB for Disc Brake 135 mm O.L.D. 12-speed

  • Simple setup and reliable trail performance
    • Easy disc brake rotor installation with spline mount and lock ring
    • Quick release axle type
    • Labyrinth & Contact Sealing
  • Smaller spline diameter for 10T top gear
  • O.L.D.: 135 mm
MODEL NO FH-MT401
SERIES SHIMANO
Color Black
Brake type CENTER LOCK disc brake
Axle fixing method Quick release
Flange diameter Left/Right (mm) 69.8/69.8
Flange distance (mm) 55.17
Offset (mm) 6.72
P.C.D. left / right (mm) 61/61
Quick engagement X (36 times/360 deg.)
10 tooth cog compatible ✔
O.L.D. (mm) 135
Spoke hole_28H ✔
Spoke hole_32H ✔
Spoke hole_36H ✔
Rear speeds 12
Quick release skewer length (mm)_168 ✔
Quick release skewer length (mm)_173 ✔
Seal_FREEHUB body Contact
Seal_Hub Labyrinth & Contact
Color_1 Hub shell Black
Color_1 Quick release Black
MICRO SPLINE ✔
Engagement type Pawl ratchet
