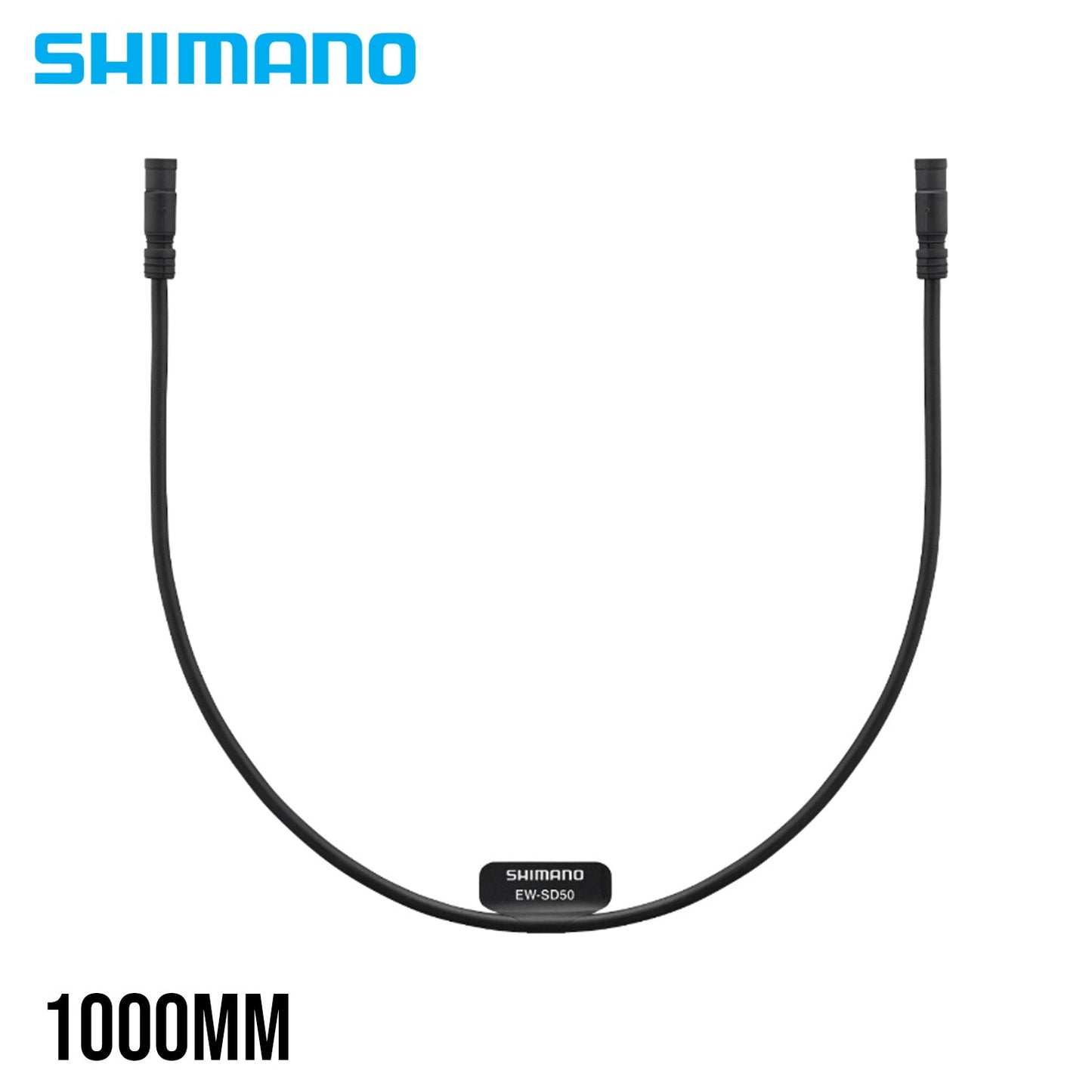

Shimano EW-SD50 E-TUBE Electric Wire
Regular price
₱1,179.00
Regular price
₱1,400.00
Sale price
₱1,179.00
Unit price
per
SKU:
Couldn't load pickup availability
E-TUBE Electric Wire
Available in lengths from 150 to 1600mm, the SD50 E-TUBE wire transmits interactive signals and provides power to E-TUBE DI2 drivetrains. With a compact, waterproof connector, it can be easily routed internally in handlebars and frames thanks to its "plug & gap" connection.
FEATURES
- Transmits interactive signals and power supply to each electronic components by “plug & gap” connection
- Compact and waterproof connector
- Easy to insert into frame
- Cable length 150 mm - 1600 mm
- With cable tie type for built-in cable routing (EW-SD50-I)
PRODUCT SPECIFICATIONS
| MODEL NO | EW-SD50 |
|---|---|
| SERIES | SHIMANO STEPS E5000 Series |
| Remarks | Cable length: 150 - 1,600 mm* * 1,600 mm is for E-BIKE usage only |
| Type | For external routing |
| Compatible system | E-TUBE system |
|---|---|
| SD50 port (pcs) | 0 |
| SD300 port (pcs) | 0 |
| SD50 connector (pcs) | 2 |
| SD300 connector (pcs) | 0 |
| Cord diameter | Φ2.8 |
| Plug diameter | Φ5.1 |
