Shimano

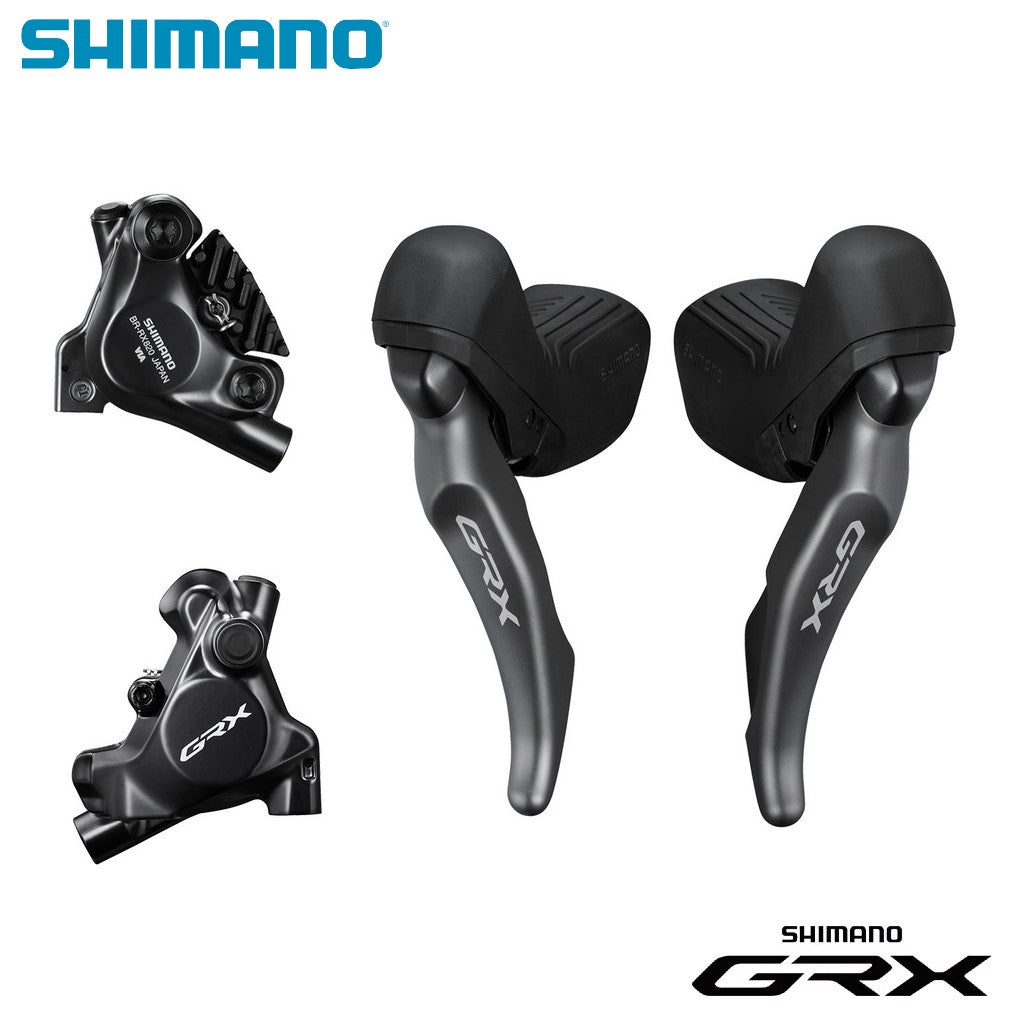

Shimano GRX RX820 STI Shifter Hydraulic Disc Brake Dual Control Lever, 2x12-Speed Assembly
Regular price
₱31,788.00
Regular price
₱35,320.00
Sale price
₱31,788.00
Unit price
per
SKU:
Couldn't load pickup availability
Unmatched control and comfort for mixed-terrain riding and racing
The SHIMANO GRX DUAL CONTROL LEVER delivers light and responsive mechanical 12-speed shifting for mixed-terrain riding and racing. The ergonomic shifter design improves comfort by decreasing pressure on your palms, while the textured, anti-slip brake lever surface increases control on bumpy terrain.
FEATURES
Greater comfort and control on mixed terrainGravel-specific brake lever and bracket ergonomicsAnti-slip coating on brake lever surfaceOptimized for use with flared handlebars
PRODUCT SPECIFICATIONS
| MODEL NO | ST-RX820-L |
|---|---|
| SERIES | GRX 12-speed |
| Color | Series color |
| Average weight | 283 |
| Bracket cover color|1 | Standard |
|---|---|
| Shifter type | DUAL CONTROL LEVER |
| Shift lever|Front speeds | 2 |
| Brake lever|Brake hose (kit) | SM-BH90-JK-SSR |
| Brake lever|Hose joint | Straight |
| Brake lever|Brake hose color (kit)|1 | Black |
| Brake lever|Recommended brake caliper | BR-RX820 |
| Brake lever|Oil | SHIMANO Mineral |
| Brake lever|Reach adjust | ✔ |
| Brake lever|Funnel bleeding | ✔ |
| Brake lever|Free stroke adjust | ✔ |
| Brake lever|SERVO WAVE | ✔ |
| Clamp band|Diameter (mm) | 23.8-24.2 |
| Shift lever cable|Outer casing|Lever side | OT-SP41 |
| Shift lever cable|Inner cable|Polymer-coated cable | ✔ |
TECHNOLOGIES
Enhanced control with better modulation and quicker initial braking point
The GRX BR-R820 disc brake caliper brings a new level of control to gravel cycling with enhanced modulation and a quicker initial braking point. And despite its smaller construction, the system is quieter and easier to maintain.
FEATURES
10% wider pad clearance decreases brake noiseMaintenance-friendly bleeding process
PRODUCT SPECIFICATIONS
| MODEL NO | BR-RX820 |
|---|---|
| SERIES | GRX 12-speed |
| Color | Series color |
| Average weight | 146 (Front) 136 (Rear) |
| Brake type | Hydraulic disc brake |
|---|---|
| Brake hose (kit) | SM-BH90-JK-SSR |
| Hose joint | Straight |
| Brake hose color (kit)|1 | Black |
| J-Kit spec (for OEM) | ✔ |
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
| Pad|Option 1 | L04C-MF Metal (w/ fin) |
| Fixing screw spec for rear mount|10 mm mount | ✔ |
| Fixing screw spec for rear mount|15 mm mount | ✔ |
| Fixing screw spec for rear mount|20 mm mount | ✔ |
| Fixing screw spec for rear mount|25 mm mount | ✔ |
| Fixing screw spec for rear mount|30 mm mount | ✔ |
| Fixing screw spec for rear mount|35 mm mount | ✔ |
| Recommended brake lever | ST-RX820 ST-RX820-LA BL-RX820-L |
| Recommended disc brake rotor | RT-CL800 |
| Oil | SHIMANO mineral |
| ONE WAY BLEEDING | ✔ |
| Mount type | Flat mount |
| Piston | 2 |
| Caliper fixing screw|Tool size | 4 mm |
| Caliper fixing screw|Anti loosen method | Screw fix pin+Snap ring |
| Pad mount | Pad axle |
TECHNOLOGIES
