Shimano

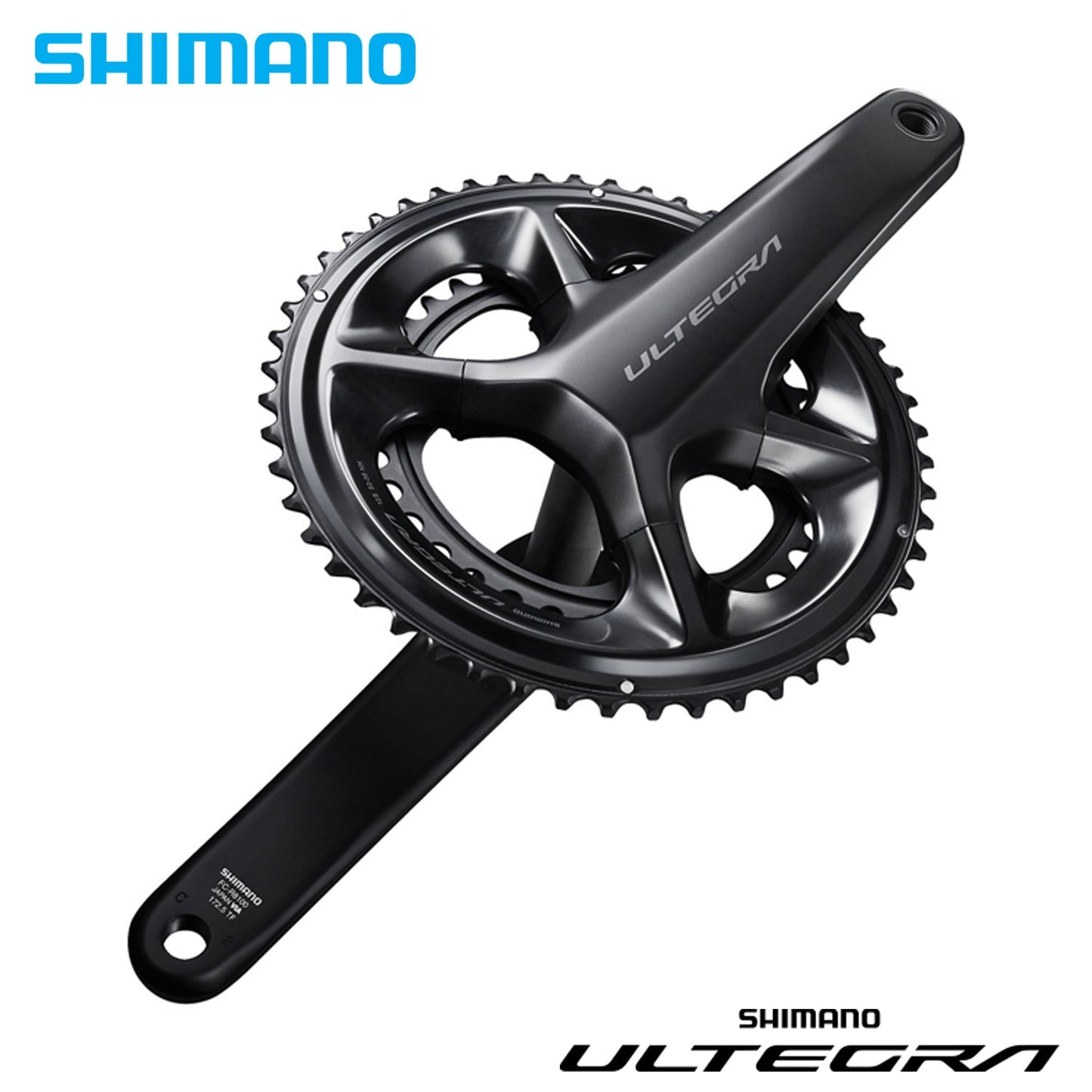

Shimano Ultegra FC-R8100 HOLLOWTECH II Crankset 2x12-speed

₱14,050.00
₱15,620.00 ₱14,050.00
Variant

SKU:

SHIMANO ULTEGRA HOLLOWTECH II Crankset 2x12-speed

FC-R8100

ULTEGRA's new FC-R8100 crank maintains the same quick, precise front shifting and efficient power transfer that Shimano riders have grown accustomed to, but with even more crank arm length options. Spanning 160 to 175 mm in length, ULTEGRA cranks now cater to smaller riders, triathletes, and cyclists curious about shorter crank arms.

An integral part of Shimano's new 12-speed road lineup, the FC-R8100 crank builds upon Shimano's legendary front shifting and transmission efficiency. With new refinements for seamless 12-speed shifting, the ULTEGRA crank is now offered in lengths from 160 to 175 mm, bringing performance and improved fit for smaller riders, triathletes, and riders with specific biomechanical requirements.

FEATURES

  • Optimal balance of stiffness, strength, weight and rotational performance
  • HOLLOWGLIDE structure cuts weight yet maintains strength for better power transfer and quicker, more precise front shifting
  • 52-36 and 50-34 chainring options. 160, 165, 170, 172.5, and 175 mm crank arm lengths.

PRODUCT SPECIFICATIONS

MODEL NO FC-R8100
SERIES ULTEGRA R8100 Series
Color Series color
Average weight 700 (50-34T) 711 (52-36T)
Rear speeds 12
Compatible chain HG 12-speed
Chain line (mm) 44.5
P.C.D. (mm) 110
Spider/Gear arms 4
Chainring combination 46-36T (NEW), 50-34T, 52-36T
Q-factor (mm) 148
Crank arm length (mm)|160 ✔
Crank arm length (mm)|165 ✔
Crank arm length (mm)|170 ✔
Crank arm length (mm)|172.5 ✔
Crank arm length (mm)|175 ✔
Optional chain guard|Without chain/bash guard ✔
HOLLOWTECH II ✔
HOLLOWTECH crank arm ✔
HOLLOWGLIDE ✔
Compatible bottom bracket type|Outboard ✔
Recommended bottom bracket|Threaded (normal) SM-BBR60
Recommended bottom bracket|Press-fit SM-BB72-41B
Threaded bottom bracket shell width (mm)|68 ✔
Threaded bottom bracket shell width (mm)|70 ✔
Crank fixing screw included ✔
