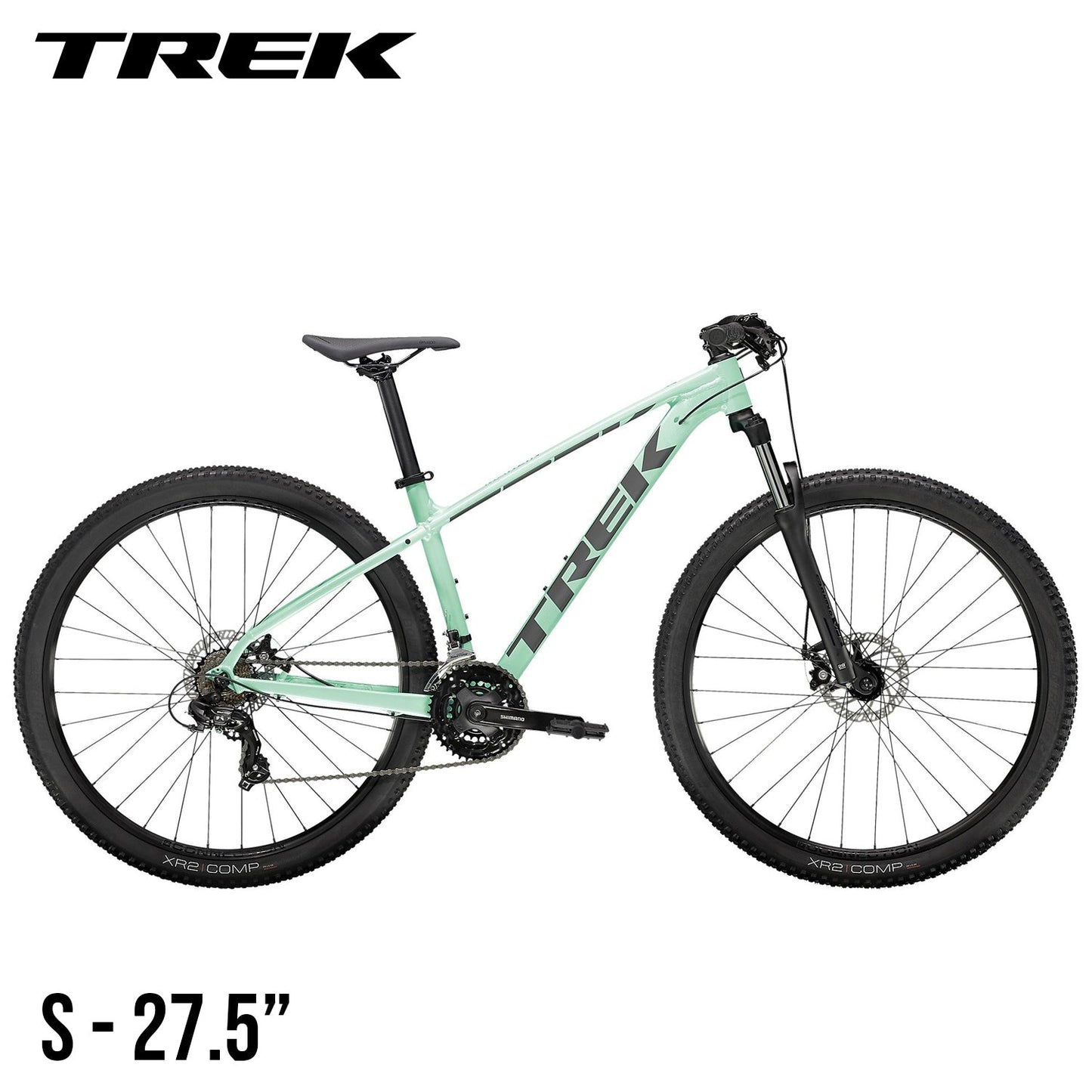

TREK Marlin 4 Gen 2 Cross Country Mountain Bike 27.5" - Voodoo Aloha Green
SKU:
Marlin 4 Gen 2
Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds, and mounts for a rack and fenders make this a great bike for new trail riders and campus commuters alike.
It's right for you if...
You want an introductory mountain bike at an incredible price, but also want a commuter that's rugged enough to hop curbs on the way to class.
The tech you get
A lightweight aluminum frame with internal routing to protect your cables and add to the bike's sleek look, 21 speeds, a wide range of gearing so you always have the right gear for your terrain, powerful mechanical disc brakes, and a suspension fork that takes the edge off bumps and rough terrain.
The final word
Marlin is made for any adventure. The rack and fender mounts make it a great choice for commuters who want to get a little rad on the way to class or the grocery store.
Why you'll love it
- It's a real mountain bike that's also perfectly suited to daily commutes, rides around campus, or just getting from A to B on any surface
- Rack and fender mounts make it easy to accessorize, so your mountain bike can double as a rugged commuter
- Smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
- Marlin models in XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
- Like every model in the Marlin family, it's backed by Trek's lifetime warranty
Will my bike have a curved top tube?
Smaller frames have a top tube that dips down as it approaches the seat tube. This design makes for a lower standover height, which is good for shorter riders because it allows them to straddle their bike more easily. Larger frame sizes have a straight top tube because taller riders with longer legs typically don’t have the same issues with standover height.
Fit for every rider
Marlin comes in seven frame sizes to suit riders of any height, and Smart Wheel Size ensures you’re on the fastest wheel that fits. The smallest sizes even come with short-reach brake levers and narrower handlebars that give smaller riders better comfort and control.
High tech, high value
Marlin looks and feels great. It’s packed with features usually found only on more expensive bikes, like a stylish frame with internal shift cable and brake hose routing, which can help your cables last longer by protecting them from the elements.
*Frame |
Size: XS , S Alpha Silver Aluminum, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
---|---|
Size: M , ML , L , XL , XXL Alpha Silver Aluminum, internal routing, chainstay disc brake mount, rack and kickstand mount, 135x5mm QR |
|
*Fork |
Size: XS SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel |
Size: S SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel |
|
Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
|
Max compatible fork travel | 100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown) |
Hub front | Formula DC-20, alloy, 6-bolt, 5x100mm QR |
---|---|
Hub rear | Formula DC-31, alloy, 6-bolt, 6/7/8 speed freewheel, 135x5mm QR |
*Rim |
Size: XS , S Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve, Black |
Size: XS , S , M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
|
Size: M , ML , L , XL , XXL Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
|
*Tire |
Size: XS , S Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20'' |
Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20'' |
|
Size: M , ML , L , XL , XXL Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.00'' |
|
Max tire size | Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer |
Shifter | Shimano Altus EF500, 7 speed |
---|---|
Front derailleur | Shimano Tourney TY300, 34.9mm clamp, down swing, down pull |
Rear derailleur | Shimano Tourney TY300 |
*Crank |
Size: XS , S , M Shimano Tourney TY301, 42/34/24, 170mm length |
Size: ML , L , XL , XXL Shimano Tourney TY301, 42/34/24, 175mm length |
|
*Bottom bracket |
Size: XS , S , M , ML , L , XL , XXL VP BC73, 73mm, threaded cartridge |
Size: XS , S , M , ML , L , XL , XXL Sealed cartridge, 73mm |
|
Cassette | Shimano TZ500, 14-28, 7 speed |
Chain | KMC Z7, 7 speed |
Pedal | VP-536 nylon platform |
Max chainring size | 1x/2x: 34T, 3x: 42T |
Saddle | Bontrager Arvada, steel rails, 138mm width |
---|---|
*Seatpost |
Size: XS , S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
Size: ML , L , XL , XXL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
*Handlebar |
Size: XS , S Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
Size: M , ML , L , XL , XXL Bontrager alloy, 31.8mm, 5mm rise, 720mm width |
|
Grips | Bontrager XR Endurance Comp, lock-on |
*Stem |
Size: XS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Size: S Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 60mm length |
|
Size: M Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 70mm length |
|
Size: ML , L Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
Size: XL , XXL Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
Headset | Semi-integrated, 1-1/8'' |
*Brake |
Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc, 160mm rotor |
Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc, 160mm rotor |
Weight | M - 14.40 kg / 31.75 lbs |
---|---|
Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
