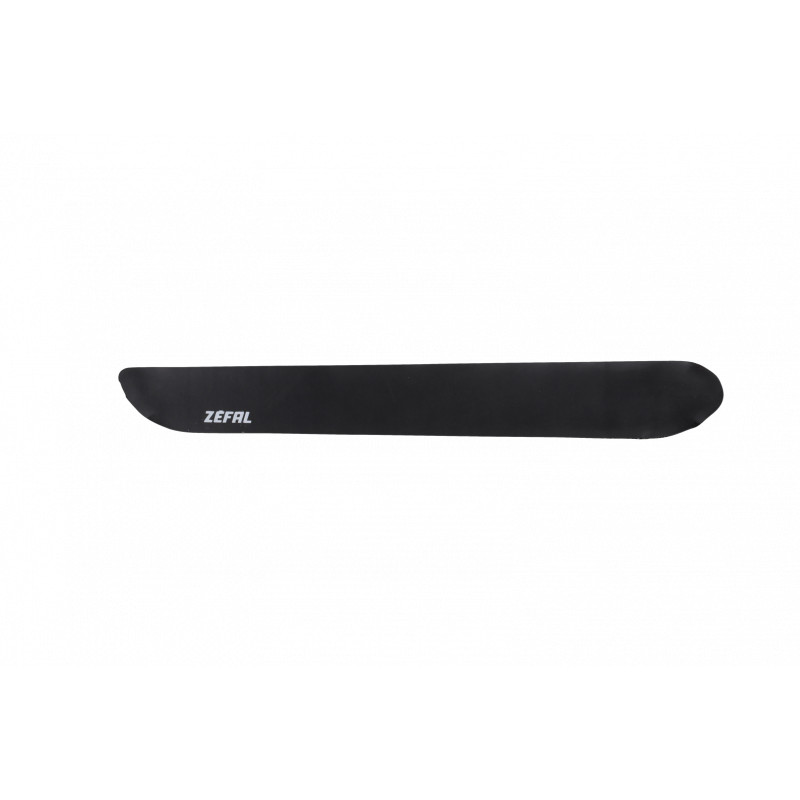

Zefal CS Armor Chainstay Protector
SKU:
CS ARMOR
Better protection
High resistant material. Thickness 1.8mm
Washable
Use jet pressure washer
Universal Mounting
Compatible with all frames
Glue shield technology
High-resistance adhesive. Doesn't damage paint or varnish
High Resistance
No rips, non-crack and secure attachment.
Characteristics
- Practice
- Enduro / DH
XC MTB - Weight
- 12 g
- Material
- PU
- Dimensions
- 33 x 250 mm
- Thickness
- 1.8 mm
- Product reference
- 2605
Tips
Mounting instructions
1. Turn the bike to have better visibility of the chain stay
2. Hold the strips against the frame to see where you will need to cut or adjust it
3. Wash your hands
4. Clean the frame with a product like glass cleaner
5. Remove the protective strip
6. Stick the strip down on one side in the middle
7. Stick the rest of the middle of the strip down by slowly moving along the frame
8. Stick the edges of the strip down starting from the middle moving outwards.
9. Rub the strip with a soft cloth to ensure it is stuck down equally and ensure any air pockets are removed.
Removal
1. Do not heat it with a hairdryer
2. Start by peeling from one of the outer edges taking care to remove both layers of the product
3. Pull the product slowly back on itself
4. Keep going until all the strip has been removed.
5. For any glue residue, clean it with a white spirit type product without ACETONE.
Usage guidelines
Product washable using a low pressure hose.
